FNP

Axel Kufus

FNP
The universal shelving system FNP combines minimal construction with maximum performance. With its consistent and transparent look it can be adapted to almost any room situation.

Full of content and possibilities

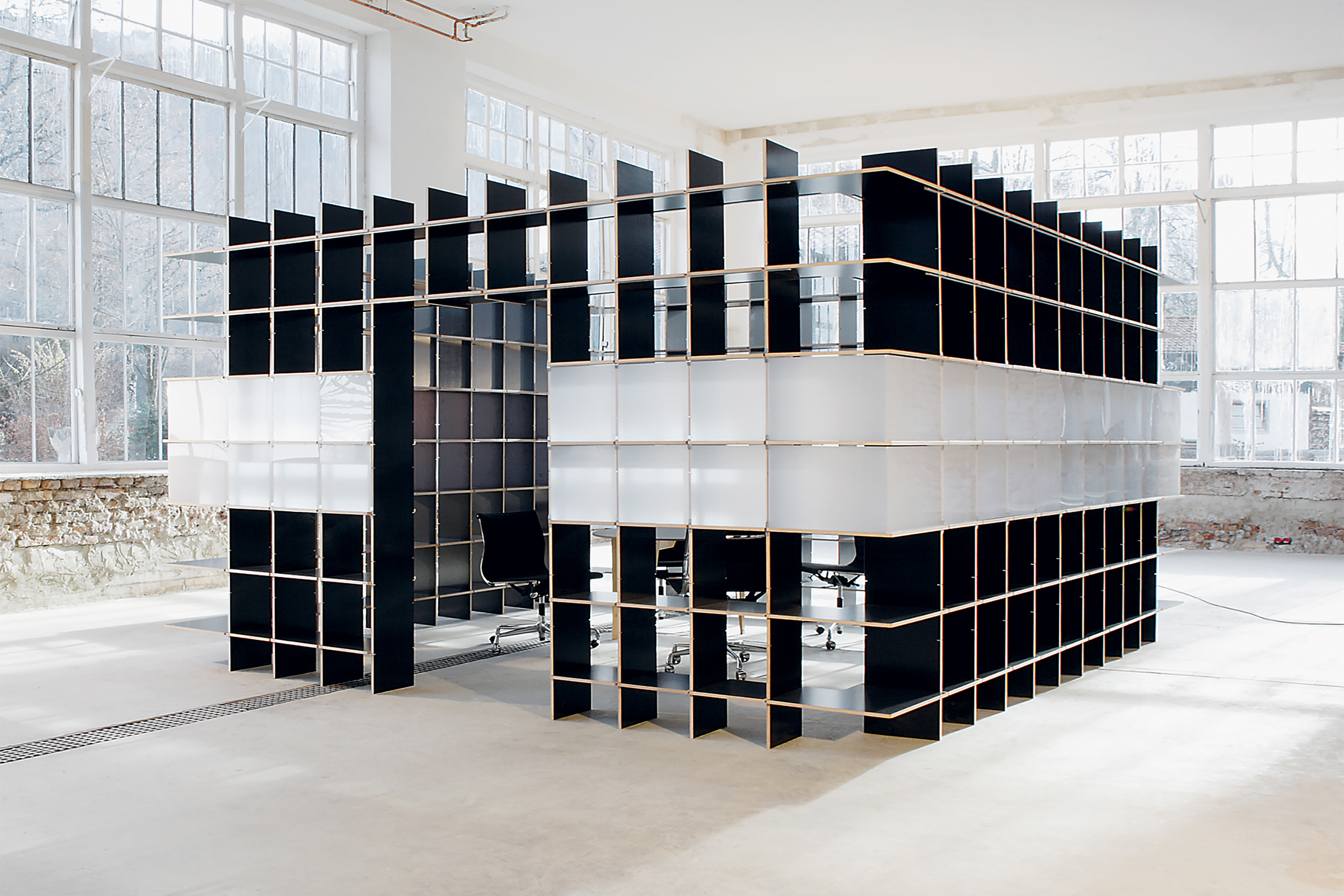

Side holds rail. Rail holds board. Board holds rail. Rail holds side. Thanks to the simple and intelligent construction, the shelf can accommodate a maximum amount of content with a minimum material thickness and can be adapted to a number of room situations. Sometimes it follows the slope of the roof, sometimes it stands alone in the room, another time the FNP leaves a section for large screens or windows with a view. Corner solutions can also be implemented as well as door overhangs or a room in room.

Material
Corpus: FU (birch plywood), MDF or Bicolor
Rails: Aluminium untreated

Production
Produced in small craft companies in the Chiemgau region and surrounding area.

The configurator is unfortunately not available for Smartphones. For an optimal view, please switch to a PC or laptop.

Please hold the tablet in landscape position to display the configurator.

Still looking for just the right product? Plan your individual solution using our extended FNP - configurator.

To configurator
Configure FNP

Product Details

Description

FNP

Design: Axel Kufus, 1989

A lot of content, little shelf

The universal shelving system FNP is synonymous with minimal construction and maximum performance. And has been for 30 years. The consistent and transparent shelf really looks good for its age. Which could be attributed to three decades of intelligent construction, regional production and sustainable use of materials combined with understatement. FNP is short for land-use plan (Flächennutzungsplan) in full length and breadth. Because in addition to the optimal use of both raw materials at 93 percent the shelf also adapts to every available space.

FNP shelf combines everything that is important to Moormann – consistency, transparency, posture and of course books.

In the meantime the shelf extends for kilometres and worldwide through flats, offices and libraries. What makes it the ideal roommate even after 30 years? FNP is not only clever, filigree, can handle loads, is stable, kind to resources, variable, easy to assemble and dismantle when moving and has lots of solution assistants such as boxes, lights or sliding doors, but has remained true to character. Which is down to the fact that the shelving system has only been cautiously elaborated and has been left as pure as it is. Even the shelf from the original year 1989 is still compatible with today’s system.

Material

Corpus

FU (birch plywood), MDF or Bicolor

Rails

Aluminium untreated

Material Properties and Care
FNP Material properties and care

FU Black (birch plywood)


Material properties:


Several birch veneers are cross-glued, creating a material with a high level of dimensional stability. Generally our birch plywood panels are surface-coated or oiled. They are produced in Finland. The slowly-growing trees in the Finnish climate create fine-grain wood of consistently high quality. The following properties can occur: knot inclusions on the edge and possibly different edge colors (image 1), inclusions, glossy stripes or matt areas on the surface (image 2).


Cleaning and care:


Light surface soiling on the untreated edges can be removed using fine-grain sandpaper. Coated surfaces can be cleaned using a soft cloth with lukewarm water and a small amount of colourless washing-up liquid. Please only wipe oiled surfaces with a slightly damp cloth and as necessary treat with colourless oil.

FNP Material properties and care

MDF Natural


Material properties:


To produce MDF materials, extremely fine, mainly bark-free wood is pressed homogenously in longitudinal and transverse direction to produce a dense wood material. Our MDF materials are produced in Germany and Austria. Characteristics of industrial production as well as slight color variations in different production batches are therefore visible. Due to signs of usage on the uncoated raw material, the furniture develops an individual character over its lifespan.


Cleaning and care:


MDF is a semi-finished material designed for coating. We use MDF for its characteristic aesthetic as an uncoated raw material. Contact or cleaning with liquids should therefore be avoided.
Light surface dirt on the untreated edges or surfaces can be removed using fine-grain sandpaper.

Dimensions
FNP Dimensions

Dimensions in cm



Height: 103.2 / 223.0 / 259.6 / 299.0 (FU) / 332.8 (MDF, Bicolor)
Width variable
Depth: 34.0
Individual dimensions are possible.



Compartment dimensions



Height: 10.3 / 22.5 / 34.7
Width: 33.0 / 67.6
Depth: 34.0



Material thickness



FU (birch plywood): 1.5
MDF, Bicolor: 1.6

Technical Details / Notes

General Information

Maximum load shelf boards width 33.0 cm: 25 kg / width 67.6 cm: 15 kg



FNP shelving system can be extended subsequently in width and add-ons.



2 brackets, screws and wall plug for wall mounting and balancing wedges for uneven floors are included in the delivery.



FNP can be combined with FNP X.

Shipping and Assembly

The individual units are shipped in flat pack form.

For larger configurations we recommend assembling by a professional team.

Wall or ceiling mounting is necessary from a height of 250 cm. A bracket for wall mounting is included in the delivery.

FNP Examples

FNP Example 1
  • External dimensions in cm

    Height: 223.0
    Width: 105.6
    Depth: 34.0

  • Compartment widths in cm33.0
  • Compartment heights in cm34.7
  • Material

    FU (Birch plywood), MDF, Bicolor or Unicolor untreated

  • Accessoires

    1 x FNP tensioning set

  • Important device

    We recommend to fix the shelf system to the wall or the ceiling. Two small wall brackets are included in the delivery.

FNP Example 1

Details
FNP Example 2
  • External dimensions in cm

    Height: 223.0
    Width: 174.8
    Depth: 34.0

  • Compartment widths in cm33.0
  • Compartment heights in cm34.7
  • Material

    FU (Birch plywood), MDF, Bicolor or Unicolor untreated

  • Technical Details

    Incl. window for example for TV

    Height: 69.3
    Width: 102.2
    Depth: 34.0
    Top edge shelf board window: 58.5

  • Accessoires

    1 x FNP Fix for compartment
    Height: 34.7
    Width: 33.0

  • Important device

    We recommend to fix the shelf system to the wall or the ceiling. Two small wall brackets are included in the delivery.

FNP Example 2

Details
FNP Example 3
  • External dimensions in cm

    Height: 223.0
    Width: 174.8
    Depth: 34.0

  • Compartment widths in cm33.0
  • Compartment heights in cm34.7
  • Material

    Shelf
    FU (Birch plywood), MDF, Bicolor or Unicolor untreated

    FNP Davenport
    Corpus: FU (Birch plywood)
    Table top: both sides coated with linoleum

  • Technical Details

    Incl. lockable FNP Davenport in seating height

    Height: 53.4
    Width: 99.2
    Depth: 34.3 / 87.4
    Top edge table top: 76.7

  • Accessoires

    1 x FNP Davenport

    1 x FNP Davenport electronic unit (incl. LED light bar and one electrical socket)

    1 x FNP Fix for compartment
    Height: 34.7
    Width: 33.0

  • Important device

    We recommend to fix the shelf system to the wall or the ceiling. Two small wall brackets are included in the delivery.

FNP Example 3

Details
FNP Example 4
  • External dimensions in cm

    Height: 259.6
    Width: 313.3
    Depth: 34.0

  • Compartment widths in cm33.0 / 67.6
  • Compartment heights in cm22.5 / 10.3 / 34.7 / 34.7 / 10.3 / 22.5 / 34.7 / 34.7
  • Material

    FU (Birch plywood), MDF, Bicolor or Unicolor untreated

  • Technical Details

    Incl. bridge

    Height: 201.0
    Width: 102.2
    Depth: 34.0

  • Accessoires

    1 x FNP Fix for compartment
    Height: 34.7
    Width: 33.0

  • Important device

    We recommend to fix the shelf system to the wall or the ceiling. Two small wall brackets are included in the delivery.

FNP Example 4

Details

Accessories

Library (6)

Construction (2)

Organisation (9)

Assembly (4)

Electronic (3)

Tray (6)

Consultation

Do you have any questions about our furniture?

We have answers.
